Metal Galvanized Base PV Mounting Structures Ground Mounted

최소 주문 수량 : 1000 와트 / 와트 가격 : US $0.05-0.18 / Watts
포장 세부 사항 : 1.카톤 박스, 목재 파렛트, 안전벨트 번들 포장과 다른 종류의 패키지는 제품 안전을 보장하고, 방수 처리합니다. 2.주문 제작된 포장 배달 시간 : 영수증 저장고 뒤에 있는 15-25 작업 일수 이내에
지불 조건 : L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램 공급 능력 : 1주일에 100000 와트 / 와트
원래 장소: 중국 브랜드 이름: TIANFON
인증: SGS,ISO 9001,ISO 14001,OHSAS 18001 모델 번호: 태양 전지판 지상 설치 체계

상세 정보

이름: 시스템 구조를 탑재하는 태양 전지판 지상 두께: 0.5mm-15mm
색: 자연 적이고 주문을 받아서 만드는 엔지니어링 서비스: 받아들일 수 있습니다
설치 시간: 7~15working 일 (1MW 프로젝트) 내구: 25년 이상
하이 라이트:

Metal Galvanized Base PV Mounting Structures

,

PV Mounting Structures Ground Mounted

,

SGS Ground Mounted PV Systems

제품 설명

Quick Installation Metal Galvanized Base PV Mounting Structures For Ground Solar Systems



Ground mounting systems which are made of Q235B or Q345B steel will be hot dip galvanized, with an average thickness of 65-80 microns (µ). They have the advantages of light weight, high strength, and recyclability.


It provides easy installation and long-term durability, setting a solid foundation for successful photovoltaic installation projects
With the continuous changes in market demand, our professional R&D department continues to improve and design new solar installation systems to meet different needs.



Short Introduction:



Structural materials: Aluminum Alloy, Hot-Galvanized Steel, Stainless Steel

Capacity: Strong

Model Number: Solar Ground Mounts

Application: Mountain, Plain, Highland, Desert

Max Building Height: 20m

Feature: Super quality;Great Compatibility; Quick Installation

Usage: Support Solar Modules


Parameter:


 Type  Ground solar mounting
 Color  Natural or Customized
 Surface Treatment  Hot Dip Galvanizing & Anodized
 Array Layout  According to the actual situation
 Install Angle  0-60 degree
 Ground Clearance  ≥0.15m
 Wind load  130mph(60m/s)
 Snow Load  30psf(1.4kN/m2)
 Applicable Module  Framed, frameless
 Module Orientation  Portrait, landscape
 Duration  More than 20 years


Advantages:



► Flexible and Adjustable
Intelligent design reduces the difficulty of installation in most cases.



► Customized
According to the needs of the project, the light transmittance should be adjusted to make full use of the land.



► High quality materials
High quality materials AL6005 and SUS304. Structural validation JIS/DIN.



► Easy to Install
Parts have been high pre-assembly on the factory to save your installation time.



► Maximum Lifespan
All parts are made of high quality extruded aluminum, carbon steel and stainless steel
The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.



Projects:

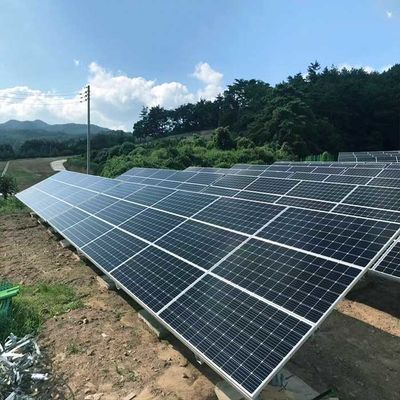

Metal Galvanized Base PV Mounting Structures Ground Mounted 0



Metal Galvanized Base PV Mounting Structures Ground Mounted 1



Real projects that we provided for our customer, Solar Power Generation Project 81.24MW Located in Pakistan



Packaging and delivery:



► Place of loading: Basic Seaport, China



► Packaging Detail: Export Standard Carton With Pallet, interleaving each profile to protect the surface



► Payment Terms: L/C,D/A,D/P,T/T



► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits



Metal Galvanized Base PV Mounting Structures Ground Mounted 2



Our Certificates:



Metal Galvanized Base PV Mounting Structures Ground Mounted 3

Metal Galvanized Base PV Mounting Structures Ground Mounted 4
